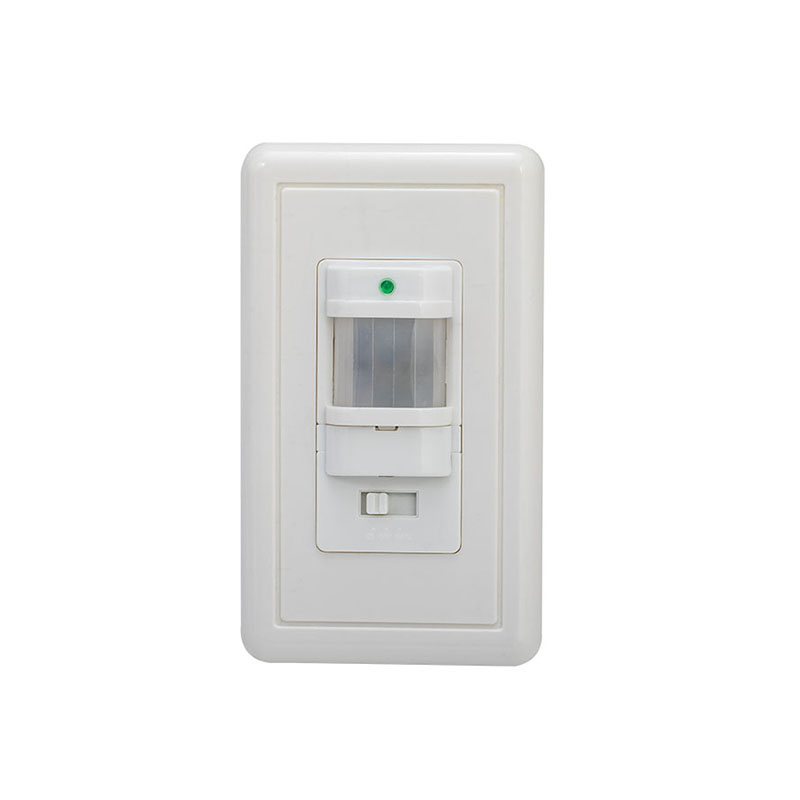

SP-S25B

Power source: 100-130V/AC

Power frequency: 50/60Hz

Rated load:

                    800W Max.tungsten

                    100W Max .fluorescent

Time setting:  Min.8 ±3 sec  Max.7min ±2 min (adjustable)

Detection range: 9 m Max (<24℃)

Detection angle: 180°

Working temperature: -10°C~+40°C

Working humidity: <93%RH

Light-control: < 20 LUX  (adjustable)

Installation height: 0.4-1.8m

Detection motion speed: 0.6-1.5m/s

Power consumption: 0.45 W
